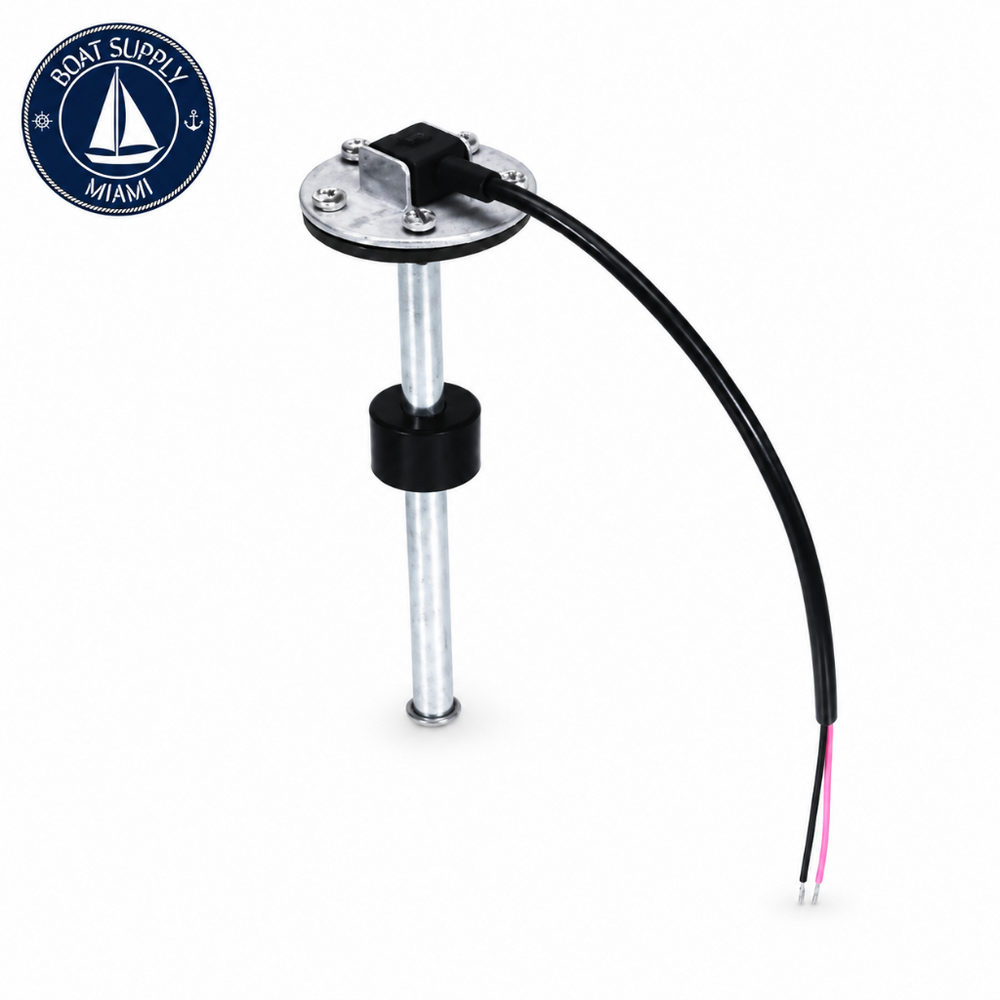

The Moeller 035764-10 is a reed switch fuel sender designed to provide a more stable and consistent fuel level reading in marine applications. It is calibrated to the 33 ohms full / 240 ohms empty standard and is compatible with gasoline, ethanol, diesel, biodiesel, and non-potable water.
Its stainless steel construction helps provide durability and resistance in marine environments, while its design takes the measurement from the float to reduce fluctuations compared to swingarm-style models. The sender is 1 inch shorter than the tank depth, so this model is designed for 13" tanks with a 12" sender length.
Features:
• Marine reed switch fuel sender
• Tank depth: 13"
• Sender length: 12"
• Resistance range: 33 ohms full / 240 ohms empty
• Compatible with gasoline, ethanol, diesel, biodiesel, and non-potable water
• Stainless steel construction
• More stable reading than swingarm-style models
• Includes 5-hole gasket and screws
• Designed for use with dash-mounted gauge
• Brand: Moeller
